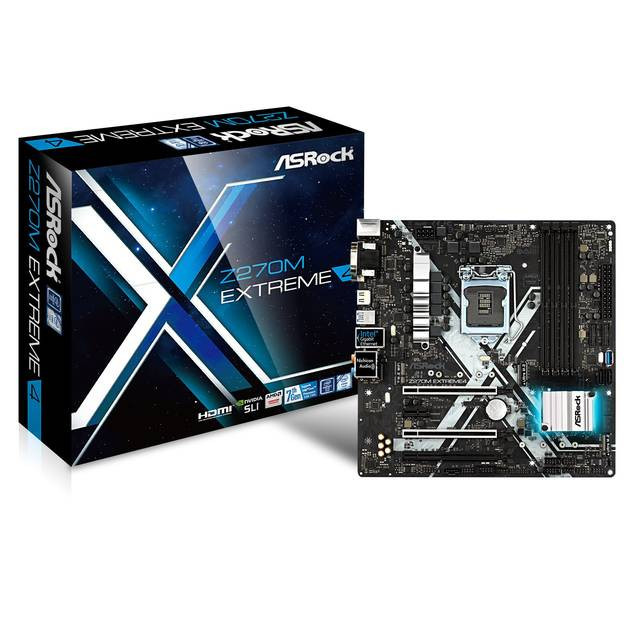

ASRock Z270M EXTREME4 LGA1151/ Intel Z270/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

ASRock Z270M EXTREME4 LGA1151/ Intel Z270/ DDR4/ Quad CrossFireX & Quad SLI/ SATA3&USB3.1/ M.2/ A&GbE/ MicroATX Motherboard

Brand: ASRock
Part Number #: Z270M EXTREME4
$740.37
$888.44
(You save $148.07 )
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description

Specifications

  • Mfr Part Number: Z270M EXTREME4
  • CPU: LGA1151
    • Supports 7th/ 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
    • Digi Power Design
    • 6 Phase Power Design
    • Supports Intel Turbo Boost 2.0 Technology
    • Supports Intel K-Series unlocked CPUs
    • Supports ASRock BCLK Full-range Overclocking
    • Supports ASRock Hyper BCLK Engine II
  • Chipset: Intel Z270
  • Memory: 4x DDR4-3600+(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
  • Slots: 3x PCI-Express 3.0 x16 Slots (run at x16,or x8/x8 or x8/x8/x4 modes), 1x PCI Express 3.0 x1 Slot (Flexible PCIe)
  • Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX and NVIDIA Quad SLI and SLI Technology
  • Storage:
    • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
    • M.2: 2x Ultra M.2 Ports, Supports type 2230/2242/2260/2280 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s)
  • Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
  • LAN: Giga PHY Intel I219V Gigabit Ethernet Controller
  • Ports: 2x USB 3.1 Ports (1 Type-C rear, 1 Type-A rear), 9x USB 3.0 Ports (4 rear, 4 via headers, 1 Vertical Type A via header), 4x USB 2.0 Ports (via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x HDMI Port, 1x DVI-D Port, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
  • Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
  • Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
