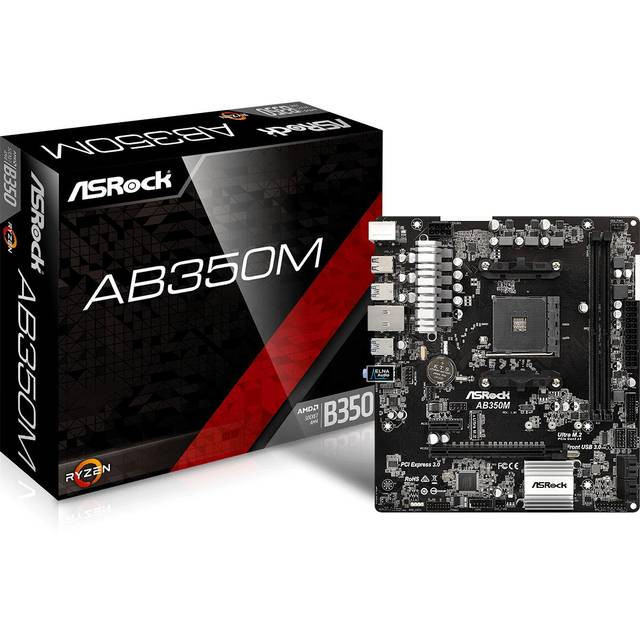

Specifications
- Mfr Part Number: AB350M
- CPU: Socket AM4
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)
- Digi Power design
- 9 Power Phase design
- Supports 95W Air Cooling
- Chipset: AMD Promontory B350
- Memory: 2x DDR4-2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 32GB
- Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x1 Slot
- Storage:
- SATA: 4x SATA3 Ports, Support RAID 0, 1, 10
- M.2: 1x Ultra M.2 Port (M Key) supports type 2242/ 2260/ 2280 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s) or M.2 PCI-Express 3.0 x2 (16 Gb/s)
- Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
- LAN: Realtek RTL8111GR PCI-Express x1 Gigabit Ethernet Controller
- Ports: 8x USB 3.0 Ports (6 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x RJ45 LAN Port, Audio I/O Jacks
- Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector
- Form Factor: MicroATX, 9.1 x 8.1 inch / 23.1 x 20.6 cm
